Spreading Wings S900

Spreading Wings S900

Highly portable, powerful aerial system for the demanding filmmaker.

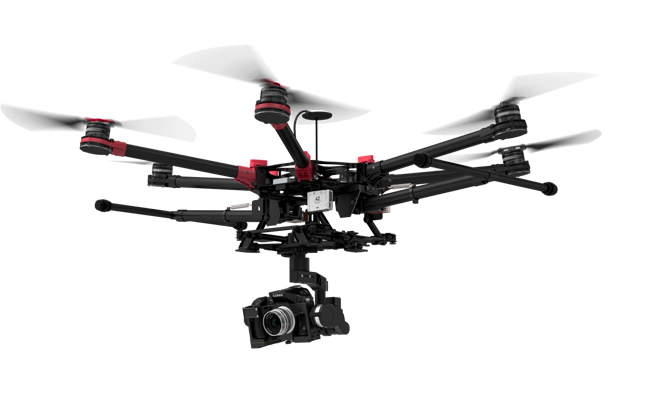

Spreading Wings S900

Introducing the
Spreading Wings S900

Frame

Diagonal Wheelbase900mm
Frame Arm Length358mm
Frame Arm Weight
(Including Motor, ESC, Propeller )
316g
Center Frame Diameter272mm
Center Frame Weight (with Landing Gear Mounting Base, Servos)1185g
Landing Gear Size460mm(Length)×450mm(Width)×360mm(Height)

ESC

Working Current40A
Working Voltage6S LiPo
Signal Frequency30Hz ~ 450Hz
Drive PWM Frequency8KHz
Weight(with Radiators)35g

Flight Parameters

Takeoff Weight4.7Kg ~ 8.2Kg
Total Weight3.3Kg
Power BatteryLiPo (6S、10000mAh~15000mAh、15C(Min))
Max Power Consumption3000W
Hover Power Consumption1000W (@6.8Kg Takeoff Weight)
Hover Time18min (@12000mAh& 6.8Kg Takeoff Weight)
Working Environment Temperature-10 °C ~ +40 °C

Motor

Stator Size41×14mm
KV400rpm/V
Max Power500W
Weight(with Cooling Fan)158g

Foldable Propeller (1552/1552R)

MaterialHigh strength performance engineered plastics
Size15×5.2inch
Weight13g

Gain Value Settings

For A2 flight controllerBasic: Roll 110%, Pitch 110%, Yaw 120%
Attitude: Roll 220%, Pitch 220%, Vertical 120%
For WooKong-M flight controllerBasic: Roll 160%, Pitch 160%, Yaw 160%
Attitude: Roll 190%, Pitch 190%, Vertical 100%
DJI - S900 Assembly Demonstration
DJI - S900 Assembly Demonstration
2014-08-13
72-Hour Flight Test
72-Hour Flight Test
2014-08-05
Introducing the Spreading Wings S900
Introducing the Spreading Wings S900
2014-08-04

Newest

  • S900 Release Notes
    2014-08-06
  • S900 User Manual v1.4
    2016-01-14
  • * Important Notice:
    As DJI Innovations has no control over use, setup, final assembly, modification (including use of non-specified DJI parts i.e. motors, ESCs, propellers, etc.) or misuse, no liability shall be assumed nor accepted for any resulting damage or injury. By the act of use, setup or assembly, the user accepts all resulting liability.
  • You will need Adobe Reader to read PDF documents.
  • * Go to DJI Wiki for release history!
Spreading Wings S900 FAQs
Each arm is designed with an 8° inversion and a 3° inclination, making the aircraft more stable when rolling and pitching, yet more flexible when rotating.
The 3.3kg total weight includes the S900 main frame, center board, arms, motors, propellers, landing gear, and other small parts that are mounted on it.
The S900 uses high strength, performance engineered plastics, greatly reducing weight while increasing stability and strength. The material has passed both our 72-hour flight test and low and high temperature tests.
The S900 can carry the DJI Z15, Z15-BMPCC, Z15-GH3, and Z15-GH4 (HD) gimbals, which do not support the Sony RX100 camera.
The Naza-M V2 supports 9 types of traditional motor mixer including hexacopter and octocopter, but because of the S900’s large takeoff capacity, we suggest you fly the S900 with a DJI A2 or WooKong-M flight controller.
The Dropsafe is fully compatible with the DJI S1000 and S900 flying platforms. You can use the DJI Z15, Z15-BMPCC, Z15-GH3, Z15-GH4 (HD) gimbals while using the Dropsafe on the S900.
The S900 can carry the DJI Z15, Z15-BMPCC, Z15-GH3, and Z15-GH4 (HD) gimbals, which do not support the Nikon D800 camera.
Yes, the S900 works perfectly with both the DJI A2 and WooKong-M flight controllers.
The S900 uses a 6S LiPo 10000mAh-15000mAh, 15C (Min) battery.

The S900 is a little different from the S1000, please watch the S900 Assembly Demonstration.

The S900’s maximum flight speed is 16m/s when using either an A2 or WooKong-M flight controller and with no payload (only the 3.3kg original weight), but we don’t recommend that you fly at this speed.
The max ascent speed for the S900 is 6m/s when using either an A2 or WooKong-M flight controller with no payload (only the 3.3kg original weight).

With the A2 flight controller:
Basic: Roll 110%, Pitch 110%, Yaw 120%
Attitude: Roll 220%, Pitch 220%, Vertical 120%

With the WooKong-M flight controller:
Basic: Roll 160%, Pitch 160%, Yaw 160%
Attitude: Roll 190%, Pitch 190%, Vertical 100%

No, the S900 can only carry the DJI Z15, Z15-BMPCC, Z15-GH3, and Z15-GH4 (HD) gimbals.
The maximum flight time is tested using a 6S 12000mAh battery on a windless day with a total flight weight of 6.8kg, hovering at a height of 2 meters.
The total weight of the S900 is 3.3kg, and its takeoff weight is 4.7-8.2kg.
You can fly the S900 with the DJI A2 or WooKong-M flight controller, 2.4Ghz Bluetooth datalink, iOSD MARK II, DJI Lightbridge HD video downlink and Zenmuse Z15 gimbals to enjoy a total aerial photography solution.
Please buy and install the S900’s extended landing gear if you want to use it with a Z15-5N gimbal.
The S900 is a hexacopter (six propellers) with a V-type motor mixer. It can carry the DJI Z15, Z15-BMPCC, Z15-GH3, and Z15-GH4 (HD) gimbals. It also has a removable upper center board and a redesigned, rebuilt power distribution system that improves safety and reliability. The S1000 is a larger octocopter (eight propellers) with a V-type motor mixer that can carry any of the Zenmuse series of gimbals.
With arms that fold in to save space, the S900 is built to be taken wherever you need to go. Then when you want to fly, it can be ready to go in just a few minutes. It also has a removable upper center board and a redesigned, rebuilt power distribution system that improves safety and reliability. Its latest motors adopt a single-wire stator design, offering improved heat dissipation, better performance, and a more reliable system.
