Flight and Aerial Photography
Waypoints Mission: plan a flight route and capture photos or videos at waypoints along the route.
Mapping Mission: collect images of an area to reconstruct a 2D model.
Oblique Mission: collect images of an area from multiple camera angles to reconstruct a 3D model.
Corridor Mission: collect images of a corridor (e.g. rivers, railroads) to reconstruct a 2D model.
Detailed Inspection Mission: Set target points on a reconstructed model and a flight route will be automatically generated, allowing the aircraft to capture photos at these target points.
DJI Terra’s Oblique Mission uses 5 flight routes to capture the same amount of data as using 5 cameras simultaneously on a drone. The 5 flight routes correspond to the 5 camera headings – downward, forward, backward, leftward, and rightward.
If you have access to a mobile device that has an internet connection (such as a cellphone), you can turn on the hotspot so that the laptop can be connected to the internet.
If the site where you are operating has no internet signal, you can pre-plan the flight route while you are indoors and have an internet connection, or manually fly the drone around the area to be mapped to set boundaries points to plan flight routes.
In photogrammetry and remote sensing, ground sample distance (GSD) in an aerial digital photo (such as an orthophoto) of the ground is the actual distance on the ground captured as represented by pixels. The unit is cm/pixel.
Mission Relative Height in Advanced Settings is the height of the takeoff point relative to the area being mapped.
Mission Altitude is the height of the drone relative to the area being mapped, which is also how ground sample distance (GSD) is calculated.
When there is a large difference between the elevation of the takeoff location and the elevation of the area being mapped, you can adjust the Mission Relative Height in Advanced Settings to ensure that the Mission Altitude is determined considering the elevation of the area being mapped.

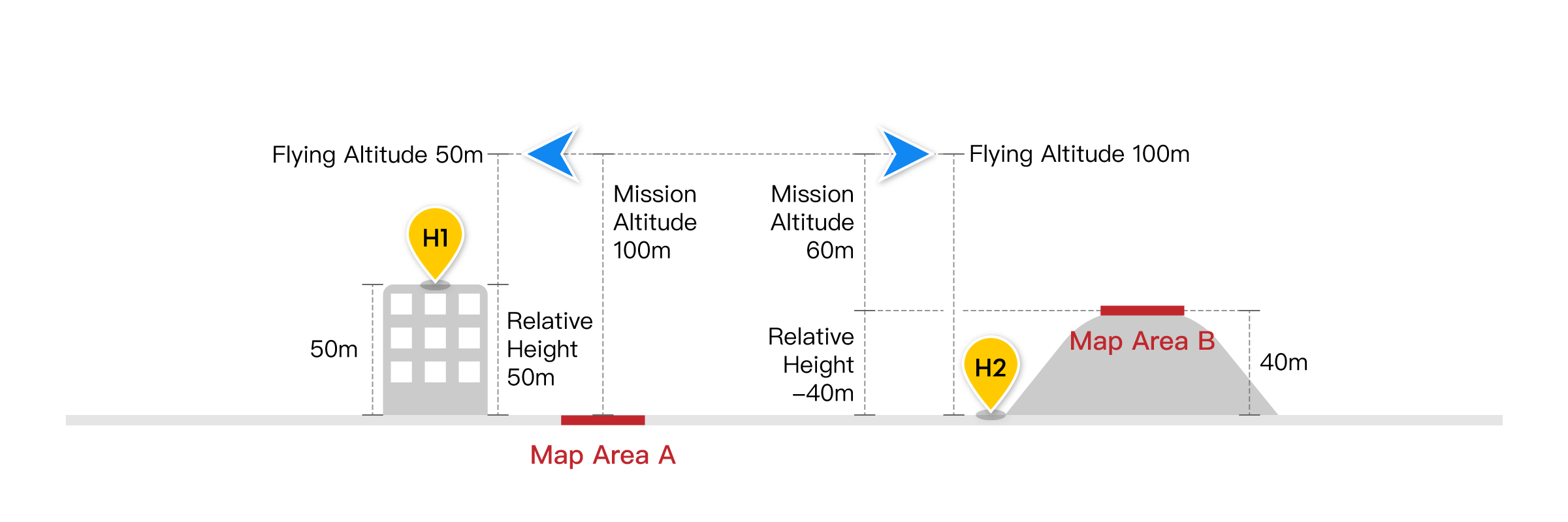

Please see the attached illustration: If the drone takes off from a 50 m building marked H1 in the illustration, the area being mapped is marked A, and the expected altitude for aerial data collection is 100 m, you can set the Mission Altitude in Basic Settings to 100 m, and Mission Relative Height in Advanced Settings to 50 m.
Similarly, if the drone takes off from H2 to map area B, which is a hill with an elevation of 40 m, and the expected altitude for aerial data collection is 60 m, then set Mission Altitude to be 60m, and Mission Relative Height to be -40 m.
1) Conduct your missions in clear weather conditions with high visibility.
2) Check the images and videos for brightness and clarity immediately after your mission.
3) During a surveying mission, avoid areas with strong electromagnetic interference or obstructions to ensure the accuracy of the attitude algorithm of the Phantom 4 RTK. Also make sure that the remote controller is properly linked to the aircraft.
4) Ensure there is enough forward and side overlap. It is recommended to have a forward overlap rate of 80% and a side overlap rate of 70%. Overlap rates can be adjusted depending on the terrain.
It is recommended to have a forward overlap rate of 80% and a side overlap rate of 70%, which should meet the requirements for most application scenarios. The overlap rate can be increased when the area being mapped has a large difference in elevation to ensure the highest point mapped has enough overlap. When the area mapped is relatively uniform in elevation, the overlap rate can be adjusted lower to reduce the amount of data that needs to be processed, making the mapping mission more efficient. However, it is recommended to keep the forward overlap at a minimum of 65% and side overlap at a minimum of 60%.
It could be that you are operating somewhere with a lot of signal interference or obstructions, which affects the strength of the RTK signal. Try turning off the RTK module and take off manually with the GNSS positioning. Once the drone reaches a height where there is less interference, you can turn on the RTK module and connect to DJI Terra to conduct your flight missions.
Phantom 4 RTK (Remote Controller), Phantom 4 Pro V2.0, Phantom 4 Pro + V2.0. Note: models may be of poor quality be unavailable in environments without RTK signals.
Detailed Inspection
Phantom 4 RTK (NO-MONITOR RC), Matrice 300 RTK + H20 Series Payloads, Mavic 2 Enterprise Advanced
Yes, LAS point cloud files can be imported.
Yes. You should set the coordinate system when you first import the file. If the file uses an arbitrary coordinate system, you need to correct it using third-party point cloud correction software.
No, the aircraft needs to be flown at absolute altitude.
1. Make sure the RTK data sources are consistent when planning or executing a flight path;
2. Flight paths can only be executed when the RTK is in FIX status. During execution, you may set the first waypoint as the hovering inspection point. The mission must be stopped if the location of the inspection point is incorrect.
Building Reconstruction Models
1. Generally, you can determine the camera’s 35 mm equivalent focal range through its manufacturer’s official website, packaging or customer service (some manufacturers label it as “equivalent focal range”). Set the camera name, fill in “35 mm equivalent focal length”, and tap the application to complete the configuration.
2. For better modeling results, you may obtain all the camera’s parameters from its manufacturer, such as F, CX, CY, K1, K2, K3, P1, and P2 (take care to distinguish the units “px” and “mm”; note that a fisheye camera has K4), then tap “Advanced Settings”, select the lens type, and fill in all the relevant parameters.
3. If you are unable to obtain all the camera’s parameters (intrinsic, principal point, and distortion parameters) from its manufacturer, you may do so by calibrating through DJI Terra.
A. For calibrating DJI Terra, we recommend using photos of urban scenes (with minimal vegetation) captured on tilted flight paths. The recommended parameters are: flight altitude of 100 m, shutter speed of ≤ 1/400 s, camera distortion correction disabled, tilt angle of -45° (pitch), and 80% forward and 70% lateral overlap rate.
B. After importing the photos, set camera information such as “35 mm equivalent focal range” and perform an aerotriangulation computation, and you will find the camera’s optimization parameters under “Camera Calibration Info” in the Aerotriangulation Report (fill in this information again in DJI Terra and perform another aerotriangulation computation, and you will receive parameters that are more accurate).
C. If you are able to obtain the values of the camera’s F, CX and CY in the “px” unit, you may enter the three parameters in the Advanced Settings (“35 mm equivalent focal range” need not be filled in this time), then perform an aerotriangulation computation. The Aerotriangulation Report will provide all the camera’s parameters at greater accuracy.
D. If the camera’s F, CX and CY values can be obtained in the “mm” unit, its sensor width, height and pixel size must be filled in first (“35 mm equivalent focal range” need not be entered this time), before performing an aerotriangulation computation. The Aerotriangulation Report will provide all the camera’s parameters at greater accuracy.
4. Other third-party software can be used for calibrating the camera. However, note that CX and CY must be defined based on offsets relative to an image’s origin in its upper left corner.
First make sure if the number of images transmitted differ significantly from the number of images shot. If they do not, you may check the log to see if a “relocalization fail” message has appeared. If so, you need to increase the mission altitude as necessary to enhance the overlap rate.
The Field Scenario is designed to capture data from a relatively flat land, for example rice or wheat fields.
The Urban Scenario is designed for areas with buildings of different heights.
The Fruit Tree Scenario is designed for orchards that might have a large variation of elevations and heights.
The 2D mapping algorithms are optimized for the three specific scenarios, so you can choose the one that best fits your mission type.
1. The head of the aircraft did not turn around during data acquisition, and the intrinsic parameter cx or cy of the aircraft is shown in the aerotriangulation quality report as >5% than half the length and width of the images;
2. The locations cover contrasting terrain, with roofs or hilltops captured in the shots, which resulted in a low overlap rate. You may re-shoot the images as needed.
1. The overlap rate is too low. You may re-shoot the images as needed;
2. Make sure “Urban” is selected as the reconstruction scenario.
When the reconstruction is complete, TFW and PRJ files are automatically generated in the root directory of the corresponding mission folder.
The location information on aerial images collected by a drone that’s not equipped with RTK is not the most accurate, which will result in a difference between the elevation in the digital surface model (DSM) and the actual elevation.
When conducting missions with the Phantom 4 RTK, if the 2D map is generated with only the Nadir view images collected, the precision of the DSM will be limited, which is why it is recommended to incorporate oblique imagery in building the 2D map to enhance precision. This can be done by setting the gimbal pitch to -45° and circling the point of interest during flight.
There are three options for reconstruction resolution: high, medium, and low, which will generate models at full, half, and quarter resolution respectively. The higher the resolution the better the quality of the reconstructed models. The rough ratio of time consumption for reconstruction at high:medium: low resolutions is about 16:4:1.
The Region of Interest(ROI) function is available. After completion of the aerotriangulation, the reconstruction area can be specified.
Gaps in the model can be due to missing shots of the area being mapped, or images taken at poor angles. The quality of reconstruction can be affected by factors such as reflective surfaces in the area (water or glass), or large areas of the same color or pattern (white walls, skies).
You will need to define the camera parameters of each of the five cameras. The captured photos will be stored in five folders corresponding to each lens.
In a folder, select all photos, right-click and go to Properties, click Details, scroll down to Camera Model, double-click the parameter value box on the right to go into edit mode, enter numbers or letters. Do this in all five folders for the five camears, the names should be different for each camera, for example it can be set to: 1, 2, 3, 4, 5 or A, B, C, D, E.
The head of the aircraft did not turn around during data acquisition, and the intrinsic parameter cx or cy of the aircraft is shown in the aerotriangulation quality report as >5% than half the length and width of the images.
The tilted shots are missing. You may recapture the images as needed.
The spots may be caused by damage to your SD card or camera.
1. Your RAM may be running low. Currently the processing speed is roughly 300-400 images/G. Divide the number of images imported by 300 and see if the result is greater than the current available RAM;
2. The overlap rate of the images is too low. Has the overlap rate been adjusted to a lower level? Were there any big altitude changes? The overlap rate may need to be increased for areas with greater altitude changes;
3. The textures of objects are not captured in the images: Overexposure of water surfaces, white walls, the sky, snowy grounds, stadiums or other large structures under the sun;
4. Repeated texture: Rice fields, solar panels, floor tiles, etc.;
5. A large number of objects were in motion: Crowds, vehicle flows, sea waves, etc.;
6. A large area captured in the image consists of objects not made of diffuse reflective materials: Mirrors, glass, reflective car surfaces, etc.;
7. The angles of view differ greatly between the images (5-camera oblique system). The top-view image has been reconstructed, but most of the images for the tilted angles are lost;
8. Image quality issues: Blurry movements, lack of focus, overexposure, etc.;
9. Non-continuity in the images, missing shots, or importing multiple sets of data not applicable to the same area.
1. Import the images into DJI Terra, and check their 2D locations on the map;
- Multiple missions can be created to reconstruct the images separately if they are not continuous and can be clearly categorized into batches
- You may capture additional images to fill in shots that may have been missed

2. The 2D locations of the images are continuous and do not show noticeable gaps;
- The reconstruction success rate is relatively low for images of large bodies of water such as the ocean; while for rivers and lakes, you should increase your mission altitude and make sure no more than 1/3 of any single photo is covered by water
- You may recapture the images if the locations are in hilly terrain and the overlap rate is lower than 60%. You should fly the aircraft at a higher altitude and ensure a sufficient overlap rate

3. Data was recorded from multiple trips, and the overlap rate between the trips is sufficient. Some trips do not appear in the reconstruction, while each trip can be reconstructed individually.
- The lighting conditions should not differ too much between the environments where the data was acquired. If some trips were recorded in the morning, while others were captured in the afternoon, the software may not be able to merge the data of different trips due to big contrasts in brightness
1. Glass and car surfaces are not made of diffuse reflective materials. You may try shooting the images at a greater distance;
2. White walls and lake surfaces do not have textures. You may try shooting the images at a greater distance.
2D reconstructions:
Results include map tiles shown in the app’s interface, digital orthophoto maps, and digital surface models in the GeoTIFF format used in UTM projections.

3D reconstructions:
Results contain a level of detail model in .osgb, .b3dm, or .s3mb, texture mesh in .ply, .obj, or .i3s, a point cloud in .pnts, .las, or .s3mb, and an aerial triangulation result file in .xml or Terra's own format.
When using the Phantom 4 RTK, the absolute accuracy achieved by the 2D maps in DJI Terra is around 1 to 2 times the GSD, which is a similar level of accuracy as other data processing software. When flying at 100m height, the absolute horizontal accuracy of the 2D map is 2-5cm, and the absolute accuracy of the 3D models is within 4cm.
The accuracy of the reconstruction can be affected by factors such as camera distortion, image quality, flight height, side and forward overlap settings, GPS (RTK) positioning accuracy and the area’s texture information.
You can click the Open folder button in each Mission to open the file folders where the files generated from the missions are stored. Aerotriangulation results are stored under "AT", 2D maps are stored under “map” and 3D point cloud or models are stored under “models”.
To view log files of reconstruction mission using Standalone computation, use Ctrl + Alt + L.
Due to limitations in the computer’s processing capacity, you can only run multiple reconstructions at the same time. They will be processed in the order in which they are added to the lineup.
Please update the GPU driver.
To build reconstruction models as quickly as possible, DJI Terra uses all the computer resources available, including the CPU, RAM, and VRAM of the graphics card, which could make the computer slower while running DJI Terra but should not be a problem once the processing is finished.
It is recommended that you don’t run other programs that might be GPU-intensive while running DJI Terra, as doing so could result in failure of model reconstruction.
To allow a .prj file to be imported into DJI Terra, you must ensure the file follows a Esri-supported format and its projection or coordinate framework data are described in WKT character strings.
1. Some of the value for horizontal or vertical accuracy in the POS data of your imported images is 0;
2. The horizontal or vertical accuracy for the image GCP is set at 0 (we recommend updating to version 2.2.1 and above which has an automatic fault tolerance mechanism).
Yes, after 3D reconstruction is complete, you can continue reconstruction by checking the required output format.
Yes. GSD is 5m/px
Output Coordinate System
The following reconstruction results can be delivered in specified coordinate systems.
Aerotriangulation: an aerotriangulation result file in .xml
2D Reconstruction: dsm.tif, result.tif
3D reconstruction: point cloud files (.las, .ply, .pcd, .s3mb) and model files (.osgb, .ply, .obj, .s3mb, .i3s) is accompanied by a coordinate system instruction file metadata.xml.
This error will pop up if reconstruction results cannot be converted to the specified coordinate system. The output coordinate system has to do with GPS information on the images and the coordinate system the GCPs are in. Here are some scenarios that you might want to consider:
(1) Aerial triangulation without GCPs

(2) Aerial triangulation optimized with GCPs
Ground Control Points (GCPs)
Ground Control Points (GCPs) are marked points on the ground with known coordinates and are clearly visible in an image. GCPs can be obtained using photogrammetry methods such as GPS-RTK or a total station.
GCPs help increase the robustness and accuracy of aerial triangulation, check the accuracy of the aerial triangulation against actual measurements, and determine absolute orientation by converting the aerial triangulation result into GCPs in the designated coordinate system.
The GCP data should be in this order: point name, latitude/X, longitude/Y, height/Z, horizontal accuracy, vertical accuracy).Accuracy data is optional. The first row is coordinate data, and each column is separated with a space or a tab. In the projected coordinate system, X represents the East, and Y represents the North.
GCPs are used to optimize the result of aerial triangulation. It would take at least three GCPs to ensure absolute orientation for aerial triangulation.
Check points are used to check for the absolute accuracy of aerial triangulation by comparing the error between the result calculated with aerial triangulation and the actual measurements.
It is recommended to use no less than four GCPs for calculation in each target area.
When you have an abundant number of GCPs, you can choose to set some of them as check points to check for accuracy.
GCPs values are used in aerial triangulation, and the accuracy should correspond to the final absolute accuracy that your project needs.
The smaller the accuracy settings, the stronger the GCP’s contribution will be to the triangulation model.
When computing a point and GCPs have been marked on at least 2 images, the 3D coordinates will be calculated and reprojected onto all images in which the point appears. The difference between the marked point and reprojected point on the image is the reprojection error. the average of different reprojection errors is shown in DJI Terra as the reprojection error.
The 3D error of a GCP refers to the spatial difference between its measured coordinates and 3D coordinates obtained by conducting space intersection with the elements of interior and exterior orientations of the image.
Given that the coordinate system in which aerial images and GCPs have been acquired can be converted using DJI Terra, i.e. the images and GCPs use the same coordinate system geodetic datum:
a) For images with high positioning accuracy, for instance, ones acquired using the Phantom 4 RTK, GCP projections will not be far off from actual measurements. Mark the GCPs with reference to their projected results on the image, and then click “aerial triangulation” on the screen.
b) For images with low positioning precision, you can run aerial triangulation first with the imported images that contain GPS information, and then import the measured coordinates of the GCPs. After the first triangulation, you can proceed with marking the GCPs and run an optimization by pressing “optimize” on the screen.
An optimization is done to improve results of aerial triangulation. If a triangulation is done immediately after marking GCPs, check points will also be used in the calculation, which is not ideal. A better process will be: aerial triangulation enter GCP coordinates and mark them against projected coordinates on the image optimize. By doing so, GCPs are used to improve the accuracy of aerial triangulation.
Make sure the positioning and attitude information of the imported images is correct.
Make sure the positioning and attitude information on the images are correct, and choose the same coordinate system as the one that the GCPs are set in.
The accuracy of aerial triangulation and optimization are affected by three factors: error in GCP marking, error in coordinate measurement, and the distribution and number of GCPs within the mapping area.
We recommend you choose at least four GCPs distributed evenly across the target area. Each GCP should appear in at least four images at different locations, and avoid having it near the edge of an image.
1. The coordinate systems do not match. Make sure the coordinate system of the GCPs is the same as that of the selected GCPs, and the coordinate system of the imported POS data is the same as the selected POS data.
2. The coordinate systems cannot be converted from one to the other. Make sure the coordinate system of the image POS data can be converted into the coordinate system of the GCPs. If not, please convert systems using a third-party software program.
3. Height errors. Check the height differences between the coordinate systems of the imported POS data and GCPs. If there are errors, adjust them in the POS data settings.
POS Data
1. If you are looking to acquire results in a particular height or coordinate system (e.g. a local height or coordinate system that might not be included in Terra's existing database) without GCPs.
2. If you are looking to process POS data and GCPs in the same height or coordinate system, you might need to import POS data and GCP data that have already been converted to said system.
The coordinate system setting of the POS data needs to correspond to the actual system written in the data. Any height errors need to be adjusted for in the settings. You can preview the height values after adjusting all the POS import settings.
1. Set to default DJI Terra accuracy. If the images contain RTK information and it is fixed, DJI Terra will read this data automatically and set the accuracy as follows: horizontal accuracy: 0.03 m, elevation accuracy: 0.06 m. If no RTK information is available or if it is not fixed, horizontal accuracy will be set to 2 m and vertical accuracy 10 m.
2. Set accuracy values manually. Edit the horizontal and vertical accuracy values into the POS data files and choose the corresponding column in in the POS import settings.
These images will not be included in aerial triangulation calculations.
Generally, you should keep it on, but turn it off if the image POS data and the GCPs are not in the same height system.
Map Grid
No, the result of map grid output will be additionally generated
Starting from the top left corner of the area covering the largest extent of the 2D map, divide it by the set map grid length, referring to the figure below
A suffix is added to the name of the result file (such as_1_2), where 1 represents X-axis and 2 represents Y-axis
Stored in the mission folder:
(1) Mission Name\map\dsm_tiles
(2) Mission Name\map\result_tiles
The map grid result will have the BigTIFF parameter if its size is over 4 GB, the result will have no such parameter if its size is less than 4 GB.
Cluster Reconstruction
Please refer to Preparation Before Using DJI Terra available on the download page.
Please refer to Preparation Before Using DJI Terra available on the download page.
It is determined by the device with the largest memory in the device participating in cluster computing. 1 GB of idle memory can process approx. 6,000 images).
Each computer connected to a local network is either a control device or a worker device. A control device assigns reconstruction missions (and also undertakes part of the computing work), while reconstruction algorithms run mainly on worker device.
Binding is not necessary. Worker devices can be replaced as needed.
Yes. For details, please refer to Preparation Before Using DJI Terra.
It is used to store original image data, temporary outputs and reconstruction outputs.
1. If Aerotriangulation Cluster Computation is enabled, DJI Terra will automatically estimate the computing speed of the standalone and the cluster and select the more efficient option. If this feature is disabled, DJI Terra will perform the reconstruction in standalone computing mode.
2. It is recommended to enable Aerotriangulation Cluster Computation when the number of photos exceeds 8,000 and three or more worker devices participate in reconstruction.
1. After aerotriangulation block splitting, the blocks need to partially overlap with a reasonable overlap rate. Therefore, the expansion distance of each block needs to be set. The setting of this parameter affects the expansion distance.
2. The larger the block expansion distance, the slower the aerotriangulation calculation. The default value is suitable for most scenarios.
The limit on processed data is determined by the memory of the control device. In the control device, 1GB of available memory can be used to process about 6,000 images, so a 128GB control device can process about 800,000 images.
DJI Terra performs aerotriangulation block splitting automatically based on the memory of the worker devices participating in the reconstruction. The worker device with the smallest amount of memory affects the size of the blocks (but does not affect the upper limit for processed data).
The reconstruction mission list displays the status of the worker devices currently participating in the reconstruction.
Aerotriangulation: Automatically selects the worker device with the highest RAM to perform the aerotriangulation missions;
Block reconstruction: When the number of blocks is larger than the number of worker devices, the worker devices will be used to the maximum extent.
No. To enable a restarted or released worker devices to participate in the current reconstruction mission, you can stop the mission and re-select the devices before continuing reconstruction.
Temporarily not to the step of using a discrete graphics card (integrated graphics cards are not used for computing on DJI Terra).
Download and install the application:
1. Ensure that the Shared Directory of the control devices and worker devices are consistent and the paths are accessible;
2. Close the antivirus software and security software, then try searching again;
3. Disable the firewall of the control and worker devices.
4. Try searching again after disabling the virtual network card (Network Settings → Change Adapter Option → Disable Networks Started with Hyper-V).
No, the photos and existing aerotriangulation results will be automatically copied to the network-attached storage (NAS) for cluster reconstruction.
1. First, check if you are using software such as Microsoft OneDrive, Outlook, Microsoft Teams and Flash. The software can be uninstalled if not needed;

2. If it is needed, you can try:
(1) Updating the above software
(2) Updating the Win10 system
(3) Updating the driver
(4) Performing the setting: IE security policy-allow dynamic scripts
(5) Performing the setting: IE advanced settings-reset
A single worker device error will not cause the reconstruction mission to fail. Any failed worker device mission will be redistributed by the control device. If the redistributed worker device also has errors, the reconstruction mission will fail.
1. In the control device, open DJI Terra, press Ctrl+Alt+L, find all logs for the corresponding time period of the failed mission in the folder and export the logs;
2. Under the shared directory, find all logs of the log folder [workers_log] corresponding to the mission and export them;
3. SDK_log.txt in the models (3D) or map (2D) folder in the cache directory of that mission.
The reconstruction process is divided into several stages which should be carried out in sequence. Some stages are completed independently on the control device, at which point all worker devices will be in the preparing state.
Some stages are split into multiple missions which are then assigned to the worker device for processing. The worker devices that have completed the missions assigned will be in the preparing state, and will enter the next reconstruction stage after the other worker devices have also completed their processing.
Zenmuse L1 LiDAR Point Cloud Process
No, Zenmuse L1 point cloud process is a free feature, but if the point cloud accuracy optimization is desired, you need to purchase the license for the Pro version or higher.
Imported folders must include LiDAR point cloud data, RTK data, IMU data, whereas JPEG data can be imported when needed (select the folder named after data collection time).

The route document are in .out and .txt format, which are SBET and SMRMSG format. The format is described below:

SBET Format

1. Point cloud effective distance: The point cloud that exceeds the distance from the LiDAR will be filtered during post-processing.
2. How to set up a point cloud effective distance: Estimate the maximum straight-line distance between the location of LiDAR and the corresponding target area when collecting data.
3. Under which scenes to set up: When reconstructing a closer measuring area, and when distant background areas are inevitably collected, you can set up an effective distance to get a better result for point cloud.
1. Point cloud accuracy optimization: Optimize point cloud data scanned at different times to make the overall point cloud accuracy higher.
2. When to turn on point cloud accuracy optimization: When it is off, if the results contain obvious layer malposition, turn on the point cloud accuracy optimization feature to fix the problem.
The default coordinate system is WGS84 and can be modified.
You are recommended to separate it into multiple tasks for processing.
The reflectivity of the measured target is between 0 - 255, where 0 to 150 correspond to the reflectivity within the range of 0 to 100% in the Lambertian reflection model; 151 to 255 correspond to the reflectivity of target objects with retroflection properties.
The 3D coordinates, RGB color, reflectivity, GPS timestamp, number of returns, the actual return number, and scanning angle of the points are recorded, along with the total number of points corresponding to each return, the software and version corresponding to the generated results, and the geographic coordinate system.
.pnts, .las, .s3mb, .ply, and .pcd
About Zenmuse L1 calibration
The calibration frequency varies according to actual usage. When the point cloud post-processing results are layered, inaccurate color rendering, or the device is accidentally dropped, you can use the Zenmuse L1 Calibration mode for processing, and then export the calibration file to the remote control for device calibration.
It is recommended to use DJI Pilot to plan the route for collecting calibration materials. The requirements for route planning are as follows:
1. Surveying area: A surveying area at least 300m X 300m with obvious texture features and building facades.
2. The oblique photography route is recommended, with the Repeat Scan Mode enabled, a route speed ≥10m/s, a route height of 100m, a forward overlap ratio of ≥80%, and a side overlap ratio of ≥60%.
3. Model coloring must be enabled (when collecting visible-light photos).
4. You can use either RTK or PPK.
1. Checkpoints can be set up in the surveying area, so that you can verify the accuracy of checkpoint based on the calibration route reconstruction results. If the accuracy reaches the engineering project accuracy, the calibration is compliant.
2. Observe whether the coloring of the point cloud results is accurate, and no layered.
About Zenmuse P1 calibration
The calibration route can be designed using 5-heading tilt-shift photography or traditional 5-route oblique photography.

To achieve a more reliable calibration result, the following parameters are recommended:
- Capturing no less than 500 images
- The front overlap is no less than 80%
- The side overlap is no less than 70%
- The proportion of oblique images is not less than 2/3
- A calibration scenario with a large elevation difference area

RTK is not required, but the quality of calibration results can be verified through RTK in connection with checkpoint layout.
If RTK positioning data is available for calibration route collection, the accuracy of checkpoints can be verified based on the results of the calibration route reconstruction by deploying checkpoints in the survey area. If the accuracy meets the required engineering accuracy, the calibration meets the standard.

If no RTK positioning data is available for calibration route collection, it is impossible to quantitatively evaluate whether the calibration result meets the standard. However, this can be verified based on the difference between the initial value and the optimized value of camera parameter focal length f and principal points cx, cy for oblique photography reconstruction after camera calibration. If there is no significant difference, the calibration can be considered as meeting the standard.
How often the load device should be calibrated depends on actual use. It is recommended to calibrate the camera using the latest reconstruction calibration file when there is a significant difference between the initial value and the optimized value of camera parameter focal length f and principal points cx, cy in the reconstruction quality report, and the reconstruction result meets the engineering accuracy requirements.
2D Multispectral Reconstruction
Currently, no.
No. Currently RGB images are required for 2D multispectral reconstructions.
Yes. You only need to import RGB images and images within the bands required by a particular vegetation index to perform a reconstruction.
Yes, before reconstruction, calibration data can be imported for radiometric correction
Up to three sets of calibration board data are supported.
Yes. The default path is C:\Users\***(User Name)\Documents\DJI\DJI Terra. You can modify the path by going to setting icon >> setting icon >> Cache directory.
Yes, the .obj files generated in DJI Terra can be imported into Maya, Blender, SketchUp, and 3ds Max. Look up tutorials for the specific process for each software.
Yes, .b3dm, .osgb, .ply and .obj files generated by DJI Terra are universal file formats and can be embedded into webpages. You can find instructions for embedding each of these formats online.
Theoretically they can be used to reconstruct 3D models although the quality might suffer. They cannot be used to build 2D reconstructions.
Theoretically yes for 3D models, but the results might not be as good as if you were to use DJI drones. The quality of the reconstructions will benefit from GPS or RTK positioning data on the images. Real-time 2D reconstructions are not supported.
1. Check if there has been any hardware changes with the computers bound to the software. Any hard disk location changes or CPU replacements will invalidate the previous binding settings;
2. Check if you have bound any hardware device on a cloud server, such as Alibaba Cloud and Tencent Cloud, which will invalidate the previous binding settings.
1. Check if any other software (or a virus, Trojan horse, adware, etc.) has been installed on your computer that is preventing DJI Terra from establishing an internet connection. This can be solved by resetting the networks of the Windows system.
2. Check if any VPN software has been enabled. If so, disable the VPN or configure the VPN correctly.
You will see the following data in the log:
[GetAvailableFunc] iDate: 1596520841 iCurDate: 1596520513 iEndDate:1596729600
[GetAvailableFunc] Local license out of date.
iDate is the server’s time, and iCurDate is the current time of the user’s computer. The license cannot be used when iDate > iCurDate.
Usually the value of iCurDate should be greater than iDate. It is possible that your computer’s clock is slow. You may try resetting the time. Both Win7 and Win10 support automatic online time calibration. We suggest you enable this feature.
